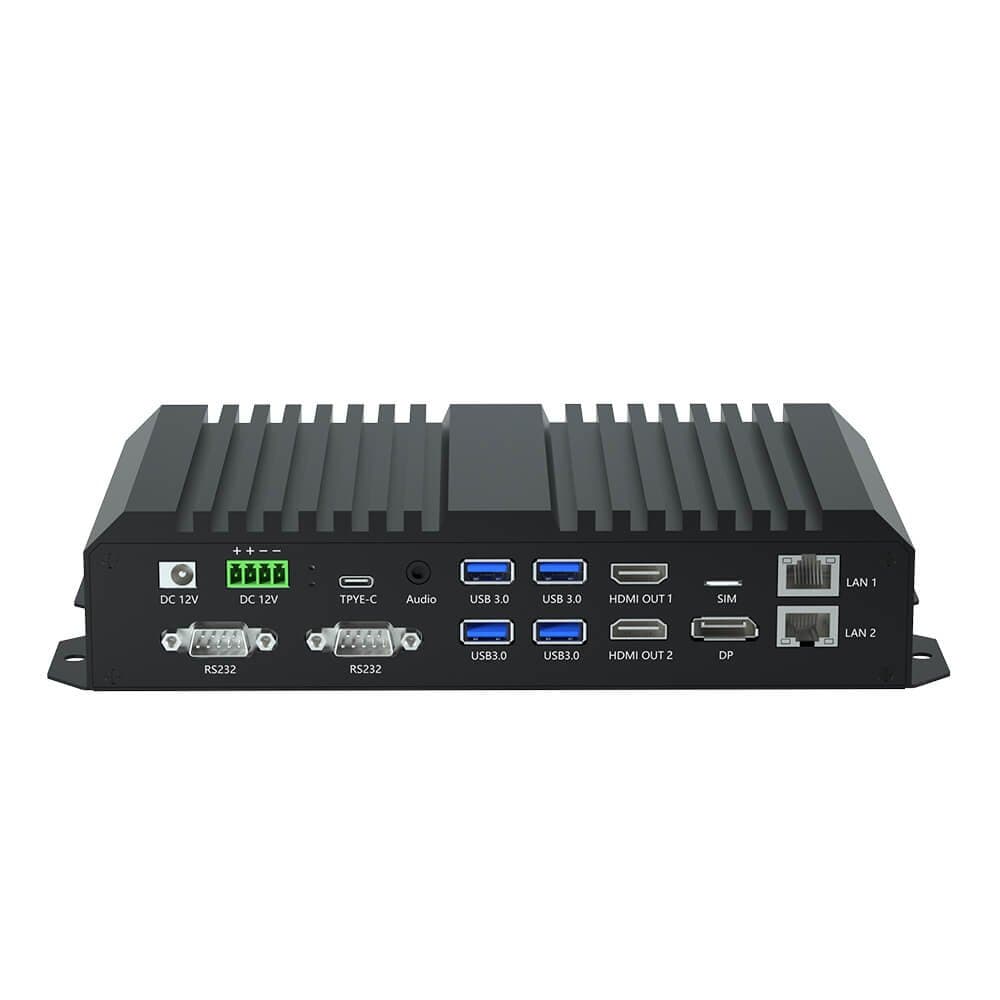

iEG Max边缘计算网关 - Image 1

iEG Max边缘计算网关

iEG Max 是一款专为楼宇数智化转型量身定制的高性能边缘计算网关。它不仅拥有瑞芯微 RK3588 带来的巅峰计算性能，更深度整合了倍联自主研发的 AIoT 能源管理平台。通过对中央空调、照明、光伏及储能系统的统一接入与智能调度，iEG Max 能够实现非侵入式的“轻量化改造”，在无需大规模破坏原装修的前提下，显著提升公共建筑的能效表现，是打造低碳楼宇、智慧园区、绿色工厂的核心中枢。
售后保障
Fast Delivery极速发货
Remote Upgrade远程升级
Quality Assurance品质保障
Lifetime Customer Support技术支持

产品描述

硬核性能： 搭载瑞芯微 RK3588 顶级 AIoT 芯片，八核 CPU（A76+A55），主频高达 2.4GHz，具备 6T 强劲算力。 极致视觉： 支持 8K 视频硬解码与双路 HDMI 8K 高清输出，满足超高清监控与数字孪生显示需求。 全能连接： 丰富的物理接口（双千兆网口、多路 USB 3.0、RS232/RS485），支持 4G/5G 扩展及 Bluetooth 5.0。 一站式能效管理： 集成空间管理、中央空调智能控制、光伏储能管理及能效分析功能，打造轻量化节能改造闭环。 系统灵活： 预装 Android 12.0 系统，完美适配倍联云平台，支持远程配置与本地逻辑独立执行。

规格参数

【核心处理器】Rockchip RK3588 (4×Cortex-A76 & 4×Cortex-A55), 2.4GHz 【AI 算力】6TOPS (INT8), 支持 INT4/INT8/INT16/FP16 【内存/存储】8GB/16GB RAM, 32GB/64GB/128GB/256GB eMMC 可选 【视频输出】HDMI 2.1 OUT (支持 7680*4320@60Hz), DP 1.4 输出 【网络通讯】双千兆以太网口, 4G/5G 扩展, Wi-Fi 5 (802.11ac), Bluetooth 5.0 【外部接口】USB 3.0×4, RS232×2, RS485×1, Type-C×1, SIM卡槽×1 【操作系统】Android 12 【工作环境】温度：-20℃~60℃，湿度：5%~85%RH
The Ultimate Integration

LinknLink iSG Box SE

Super Gateway with Built-in Home Assistant, AI Chat Agent, Google Play, and 8K Streaming. All-in-one smart home intelligence.

Smart Home Integration
Smart Hub

Overwhelmed by Apps?

Control everything from one hub. With built-in Home Assistant, iSG Box SE unifies support for 2,500+ brands, Matter, Zigbee, and Z-Wave into one simple web, mobile, or TV interface.

  • ✓Unified smart home interface
  • ✓Built-in Home Assistant Core
  • ✓HomeKit Bridge capability
Streaming & Google Play
Entertainment

Home Cinema & Apps

Experience cinema-quality 8K video via HDMI. Enjoy native YouTube, Netflix, and Prime Video streaming, plus access to over 10,000 apps via built-in Google Play.

  • ✓8K Video Decoding
  • ✓Native Google Play Store
  • ✓Digital Signage capabilities
AI Chat Agent
AI Agent

Just Talk, No Learning Curve

No more apps! Simply chat on Telegram or WhatsApp, using text or voice, to control your smart home, check device states, and get your daily update.

  • ✓WhatsApp & Telegram control
  • ✓Conversational voice & text AI
  • ✓Automated routine suggestions
Local Network Control
Local First

Fast, Reliable, & Secure

With iSG’s Local First architecture, your smart home runs instantly, even offline. But if you need remote access - stays free forever via the LinknLink App.

  • ✓Zero cloud dependency
  • ✓Free remote app access
  • ✓Local instant response

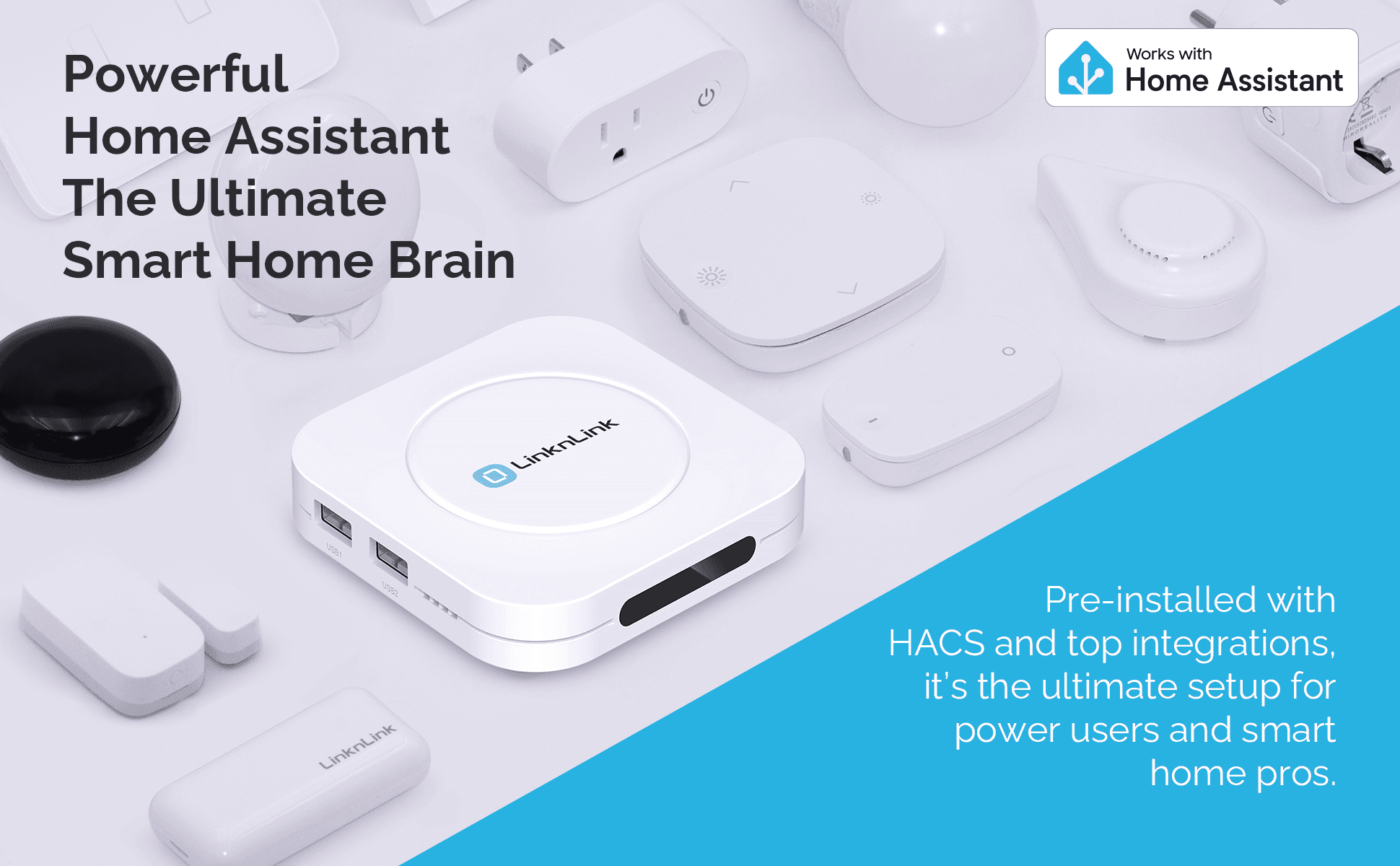

Hardware & Ports
Hardware

Powerful Interfaces

Equipped with Quad-core processing, dual USB ports, Micro SD storage, HDMI 2.0, and 100M Ethernet. Seamlessly plug-and-play Zigbee/Z-Wave sticks with instant auto-configuration.

  • ✓Quad-Core Performance
  • ✓Auto-detects CP210x/CH340 sticks
  • ✓Robust thermal management
